Solid Waste Management System

The safe and sustainable management of solid waste (SWM) is social responsibility of all people supporting and health-care activities. Effective SOLID WASTE MANAGEMENT (SWM) is mandatory for healthy humans and cleaner environment. The new rules are meant to improve the segregation, transportation, and disposal methods, to decrease environmental pollution so as to change the dynamic of SMW disposal and treatment in India. For effective disposal of SOLID WASTE MANAGEMENT, there should be a collective teamwork with committed government support in terms of infrastructure development, dedicated health-care workers and health-care facilities, continuous monitoring of SMW practices, tough legislature, and strong regulatory bodies. The basic principle of SOLID WASTE MANAGEMENT is segregation at source and waste reduction. Besides, a lot of research and development need to be in the field of developing environment friendly devices and SMW disposal systems for a greener and cleaner environment.


Activities

Admin Activities
House Master
- Details of each house will be updated one-by-one or bulk upload
RFID tag registration
- RFID tag will be updated in the system by scanning one-by-one
RFID tag Mapping
-Registered RFID tag will be mapped with registered house along with GPS LAT-LOG
Route Registration
-Route will be created in master
Vehicle Registration
-Update all vehicle in master
Route Mapping
-Route will be mapped with each vehicle
Device Master
-Update all RFID reader device in the system
Staff Management
-Update all staff into the system
Device mapping
-Device will be assigned to staff
-Devices will be assigned to vehicle also

Dashboard & Reports

Dashboard Reports
  • Live Vehicle details (Start/End time)
  • Collection of waste count (Total & Route wise)
  • Non Collection of waste Report (Total & Route wise)
  • Vehicle diversion Report
  • Waste Collection Report
  • Non Collection of waste Report
  • All Vehicle details Report

Hardware

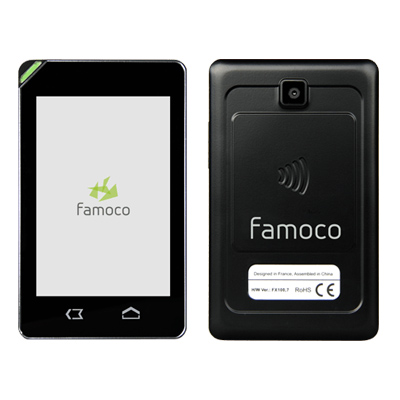

RFID handled Reader

    SPECIFICATION
  • OS: Secure Android™ 6.0
  • CPU : Quad Core 1.3 GHz
  • Memory : RAM : 1GB / Mass Storage : 8GB
  • Memory Extension : Micro SD slot
  • SIM : Dual-SIM (micro SIM slots - 3FF) Battery : Removable 2000 mAh battery
  • Power : USB / DC charge / Wireless
  • Interface supported : USB 2.0 OTG
    • DATA CAPTURE
  • NFC read / write : HF RFID 13.56 MHz : ISO14443A, ISO15693
  • Front camera : 2MP
  • Rear camera : 5MP autofocus, LED flash (2D barcode scanning / ID scanning)
    • WIRELESS COMMUNICATION
  • GSM : 2G / 3G (GPRS, EDGE, HSDPA, HSPA+)
  • WiFi : 802.11b/g/n
  • Bluetooth : Bluetooth Class II, V4.0, BLE
  • Positioning : A-GPS
    • PHYSICAL CHARACTERISTICS
  • Display : IPS WVGA 854x480 pixels - 4,5’’ Touch panel : Capacitive 3 points + gesture, screen protector (IK06)
  • Sensors : Accelerometer
  • Notification : Tri-color LED, vibrator
  • Audio : Speaker, microphone, audio-jack
  • Size (LxWxH) & Weight : 138x68x19 mm / 150g
    • SECURE ELEMENTS
  • Embedded SE : Internal Secure Element
  • Removable SE : SAM slot (2FF)

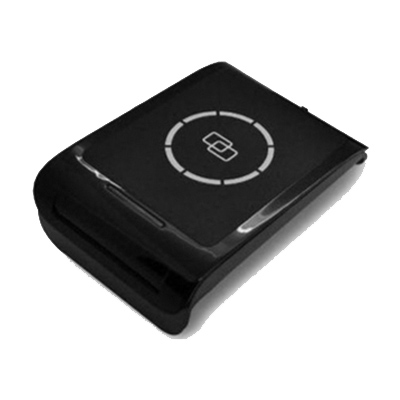

    SPECIFICATION
  • API Support Window, iOS, Android, Linux
  • Protocols EPC C1G2 ISO 18000-6C
  • Dimensions 70mm X 112mm X 23mm
  • Housing Material Plastic
  • Frequency TW 922-928MHz/EU 865-868MHz/
  • USA 902-928MHz/CN 920-925MHz
  • JP 916-921MHz/KR 917-921MHz
  • Output Power -2dBm-18dBm
  • Reading Range Up To 25cm
  • Interface USB-Keyboard emulator / HID/USB CDC (Visual Serial Port), Option for RS232/UART in
  • TTL leve l/ I2C
  • Power Supply USB Port (3-7 VDC)
  • Operating Temperature 0°C to +50°C (+32°F to +122°F)

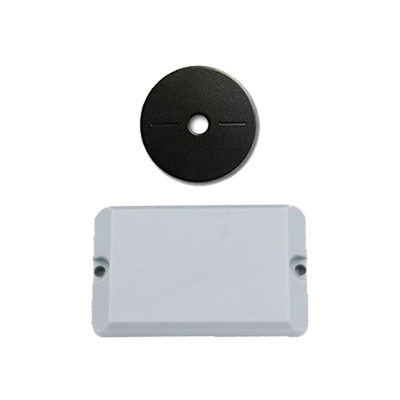

Tag personalization reader


Tag personalization reader

  • Operating Frequency : 13.56 MHz. (HF-High Frequency).
  • Capacity : 512 bit up to 10Kbits
  • Data Coding Type : IC dependent
  • Common Usage : CD and DVD tagging
  • Standard Deployment : Electronic label application, Electronic Article Surveillance
  • Tested Read Range : Maximum 10cm Read, and Write 5cm Detection (The distance may vary depend upon the environment)
  • Multi-Detection :Yes
  • Max read quantity : 30 labels/sec
  • Size : Round 40 mm
  • Material :Opaque matt paper
  • Color :White
  • Weight :0.5 g
  • Compliance :ICODE, SLI
  • Regulatory Specifications : ISO 15693
  • Operating Specifications : Waterproof and dustproof
  • Resistance to immersion in salt water, alcohol, oil, 10% HCL,
  • NFC Compatible
  • Shock Dependent on packaging
  • Vibration Dependent on packaging
  • Temperature Storage 40 °C to 85 °C
  • Operating -25 °C to 70 °C

MODULE
Name Teltonika TM2500
Technology GSM, GPRS, GNSS, BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class
Data support SMS (text/data)
POWER
Input voltage range 6 -30 V DC with overvoltage protection
Back-up battery
   170 mAh Li-Ion battery (0.63Wh)
   At 12V < 2 mA (Ultra Deep Sleep)
   At 12V < 4 mA (Deep Sleep)
Power consumption
   At 12V < 5 mA (Online Deep Sleep)
   At 12V < 6 mA (GPS Sleep)
   At 12V < 35 mA (nominal with no load)

GPS Devices

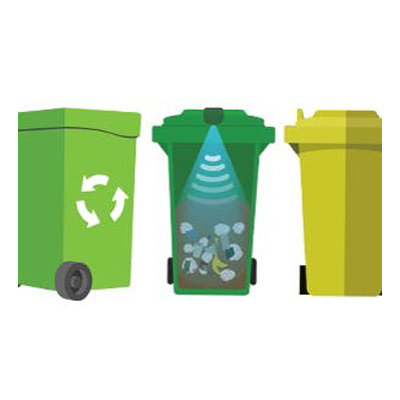

Smart Bin

PRODUCT FEATURES:
Ultrasonic ranging module HC - SR04 provides 2cm - 400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules includes ultrasonic transmitters, receiver and control circuit. The basic principle of work:
(1) Using IO trigger for at least 10us high level signal,
(2) The Module automatically sends eight 40 kHz and detect whether there is a pulse signal back.
(3) IF the signal back, through high level , time of high output IO duration is the time from sending ultrasonic to returning.
Test distance = (high level timex velocity of sound (340M/S) / 2,
WIRE CONNECTING DIRECT AS FOLLOWING :
  • 5V Supply
  • Trigger Pulse Input
  • Echo Pulse Output
  • 0V Ground
ELECTRIC PARAMETER :
  • Working Voltage DC 5 V
  • Working Current 15mA
  • Working Frequency 40Hz
  • Max Range 4m
  • Min Range 2cm
  • Measuring Angle 15 degree
  • Trigger Input Signal 10uS TTL pulse
  • Echo Output Signal Input TTL lever signal and the range in proportion
  • Dimension 45*20*15mm

Key Features of RFID based Solid Waste Management Solution

  • RFID technology will give the reading good amount of reading range than the traditional bar-code system
  • RFID will also help to maintain the social distancing while scanning the tag
  • Durability of RFID tags are more than the Bar-code stickers
  • Readability issue will arise in case of damage of Bar-code stickers
  • Data read success ratio is more in the case of RFID technology
